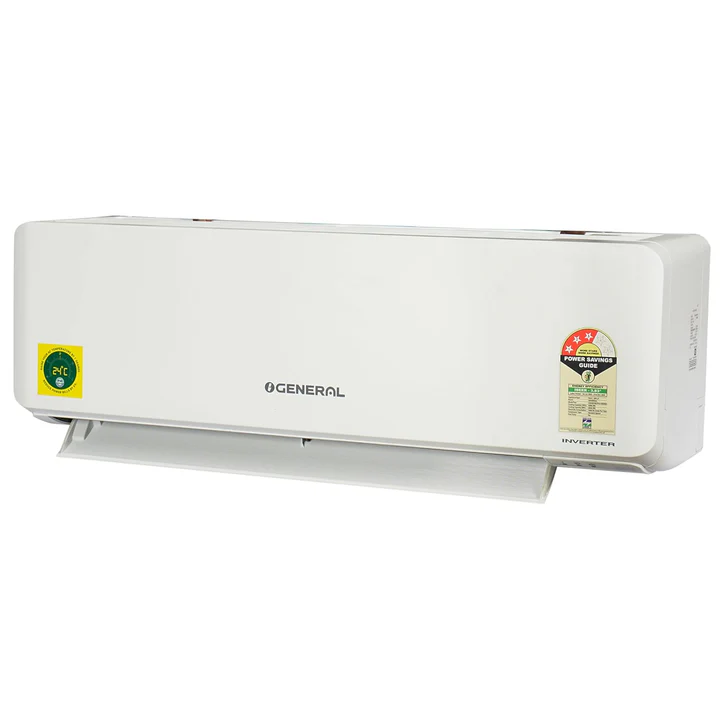

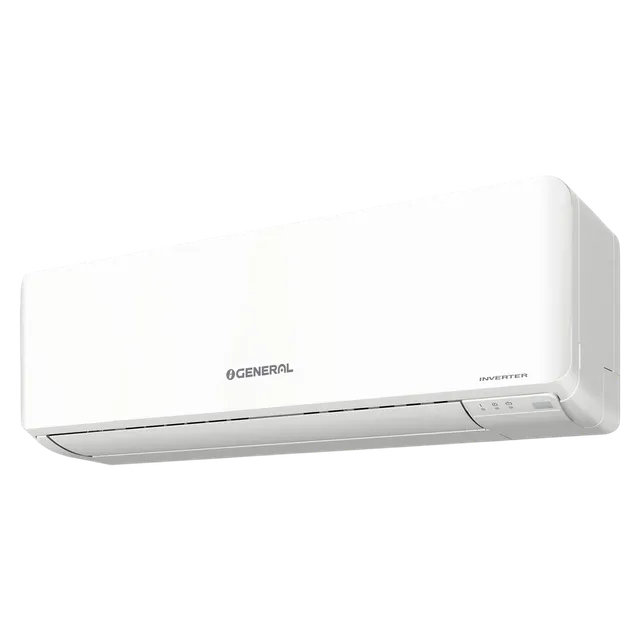

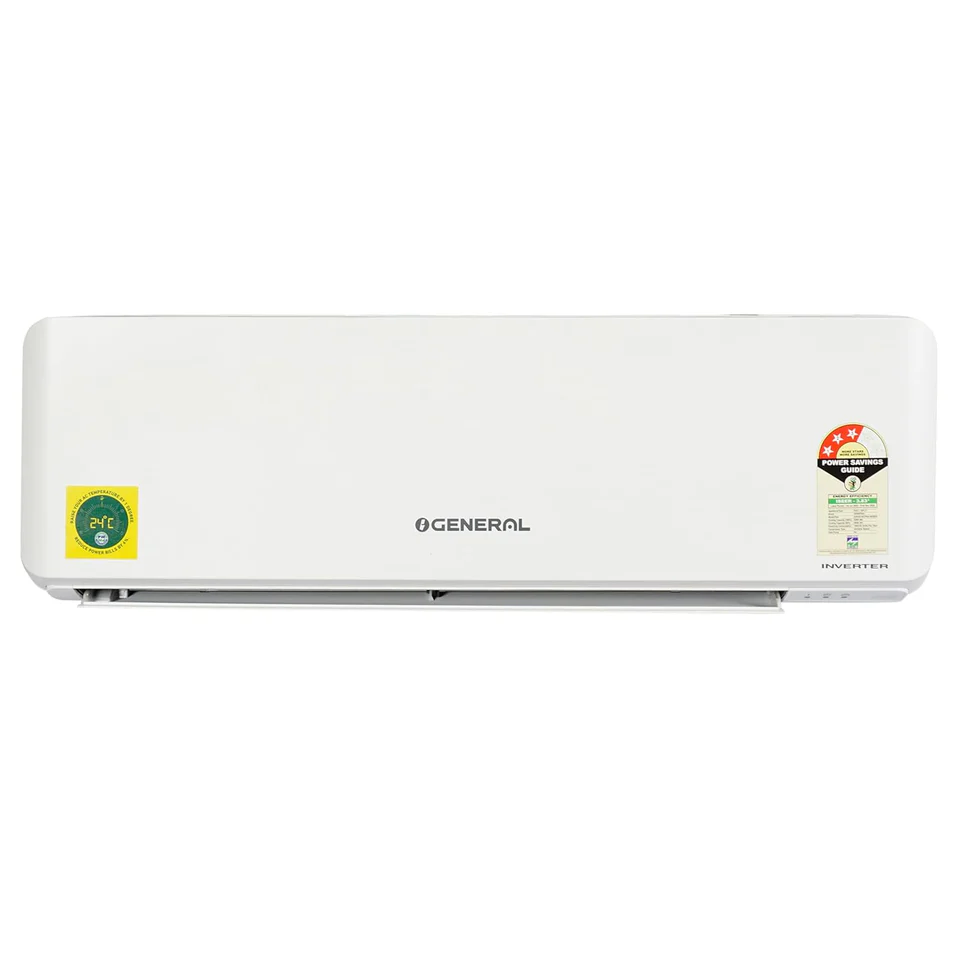

General

Capacity

1.5 Ton

Model

ASGG-AOGG18CPAB-B

BEE Star Rating (★)

3★

Check for Main Power Supply

Main Power Supply at

INDOOR UNIT

 Main Power Source P & N

230 Volts / 50Hz / 1 Phase

Proper Earthing

Mandatory

Main Power N & E

± 3 Volts

Resistance (To be measured with ground test meter)

<25 Ohms

ODU TO IDU Wiring

Maximum Operating Current in A*1

6.3

Starting Current in A

NA

Connection Cord ODU to IDU in mm2

1.5—2.5

No. of Cores – ODU to IDU

3

Power Cable in mm2

2.5—3.5

No of Cores – Power Supply

3

Connection cable limited wiring length in m*2

16

Circuit Breaker Current in A

16

Piping Size & Thickness

Type of Gas

R32

Copper Pipe Thickness in mm

0.8

Pipe size-Liquid in mm

Ø 6.35

Pipe size-Suction in mm

Ø 12.70
